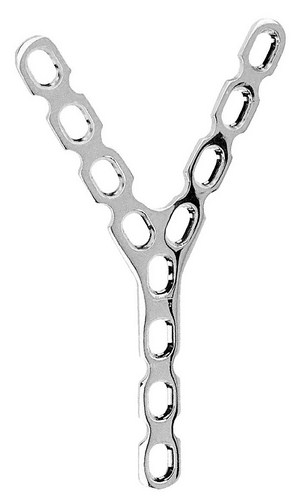

Y – Reconstruction Plate 3.5 mm

Indication: Used to treat comminuted fractures, particularly of the distal humerus. The design of these plates allows for three-dimensional contouring.

Screws to be used: Fixation with diam. 3.5 mm small cortical screws and 4.0 mm small cancellous screws.

Plate details: Y reconstruction plates are manufactured from relatively soft material. Design and softness of the material enable three-dimensional contouring. If necessary, the plate can be shortened by breaking or cutting. Adjustable in three-dimension with bending pliers.

Plate thickness: 1.5 mm

Plate width: 9.0 mm

Hole spacing: 12.0 mm

Material:

Stainless Steel F.138

Titanium Alloy F.136
