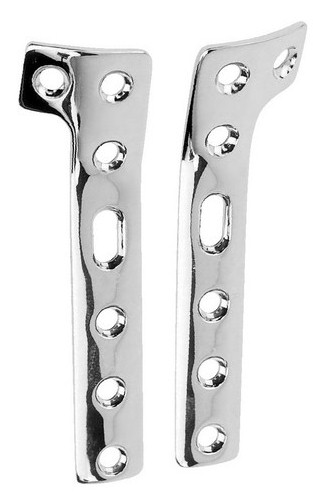

L – Plate 4.5 mm

Indication: The L plate is an adaptation of a standard T plate. All holes configurations and plate dimensions are similar to that of the standard T plate, but the head of the plate is shifted either left or right to allow for alternative screw placement. recommended for treatment of tibial head fractures.

Screws to be used:Head of plate accept 6.5 mm cancellous screws. Plate shaft accepts 4.5 mm cortical screws.

Plate details: Plate is contoured during manufacture to approximate the eventual fracture site, allowing fine adjustment to be made in theatre.

Plate thickness: 2.0 mm

Plate width: 16.0 mm

Head width: 26.0 mm

Hole Spacing: 16.0 mm

Material:

Stainless Steel F.138
