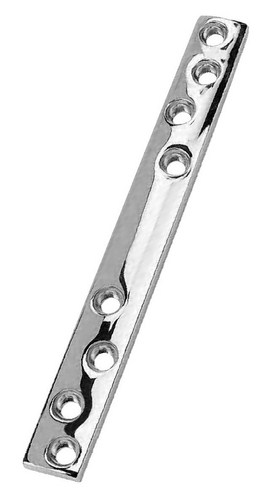

Broad lengthening Plate 4.5 mm with 8 and 10 holes

Indication: Used for the lengthening osteotomies of the femur. Slot for articulated tension device for distraction or compression.

Screws to be used:Fixation with diam. 4.5 mm cortical screws. 6.5 mm cancellous screw may also be used in the end holes. Slot for distraction or compression with articulated tension device.

Plate details: Plate profile 16.0 x 5.0 mm.

Plate thickness: 5.0 mm

Plate width: 16.0 mm

Hole spacing: 15.5 mm for 8 Holes 14.5 mm for 10 Holes

Material:

Stainless Steel F.138
