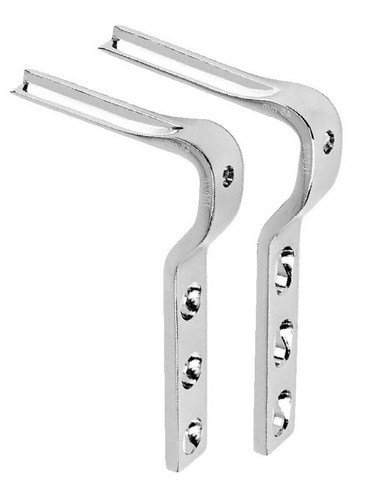

Angled blade plates for intertrochanteric femoral osteotomies in children

Indication: This plate is principally used for intertrochanteric femoral osteotomies in children up to 10 years of age.

Screws to be used: Fixation with
4.5 mm cortical screws. Shaft with 3 and 4 DCP dynamic compression hole for round holes. Also slot available for tension device.

Plate details: These plates have three different angle of 80º-90º-100º between blade and shaft. Shaft with 3 and 4 dynamic compression holes or round holes. Length of blade measured on inner side.

Plate Thickness: 4.0mm

Plate width: 11.5mm

Hole Spacing: 16.0mm

U-Profile blade: 4.0 mm – 11.5 mm

Material:

Stainless Steel F.138
