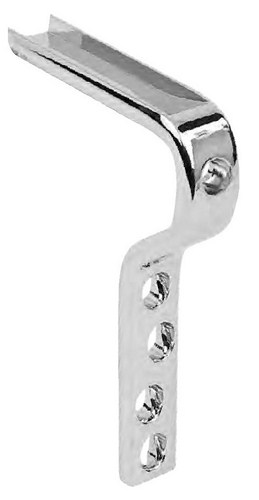

Angled blade plates for intertrochanteric femoral osteotomies in adults (90º-100º)

Indication: This plate is principally used for intertrochanteric femoral osteotomies in adults.

Screws to be used: Fixation with
4.5 mm cortical screws. The hole in the bend enables fixation of the calcar femoris with a long cortex.

Plate details: These plates have two different angle of 90º-100º between blade and shaft. Shaft with 4 dynamic compression holes or round holes.
Length of blade measured on inner side. All plates are slotted to accept a tension device.

Plate Thickness: 6.4mm

Plate width: 16.0mm

Hole Spacing: 16.0mm

U-Profile blade: 16.0 mm – 6.4 mm

Material:

Stainless Steel F.138
