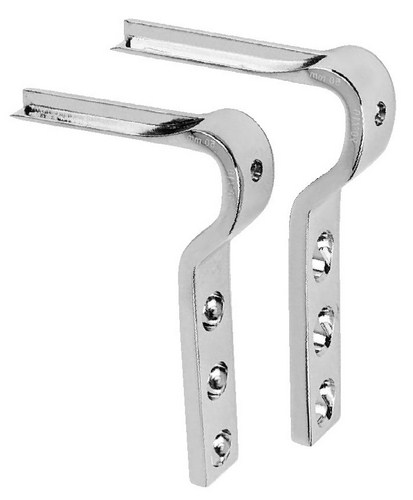

Angled blade plates for intertrochanteric femoral osteotomies in Adolescents 90º

Indication: This plate is principally used for intertrochanteric femoral osteotomies in small statures adults or in adolescent.

Screws to be used: Fixation with
4.5 mm cortical screws. Shaft with 3 and 4 DCP dynamic compression hole for round holes. Also slot available for tension device.

Plate details: These plates have angle of 90º between blade and shaft. Shaft with 3 and 4 dynamic compression holes or round holes. Length of blade measured on inner side.

Plate Thickness: 5.0mm

Plate width: 13.0mm

Hole Spacing: 16.0mm

U-Profile blade: 5.0 mm – 11.5 mm

Material:

Stainless Steel F.138
